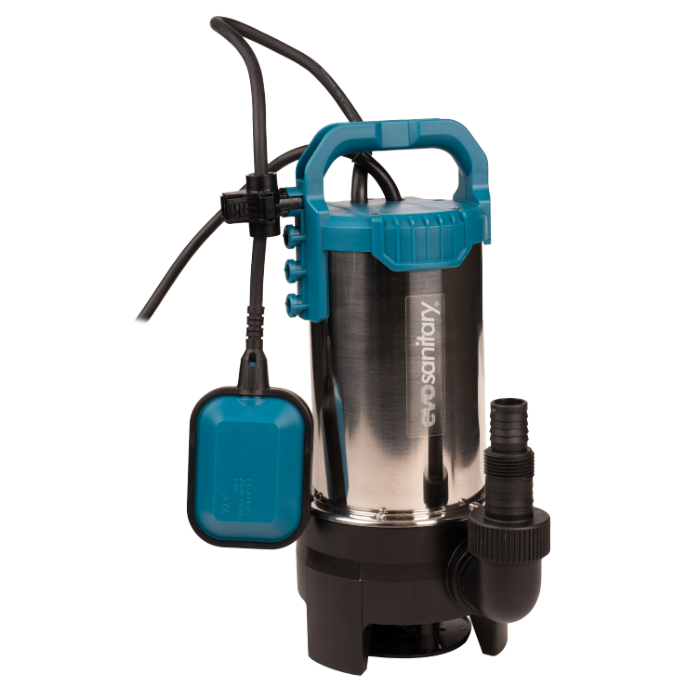

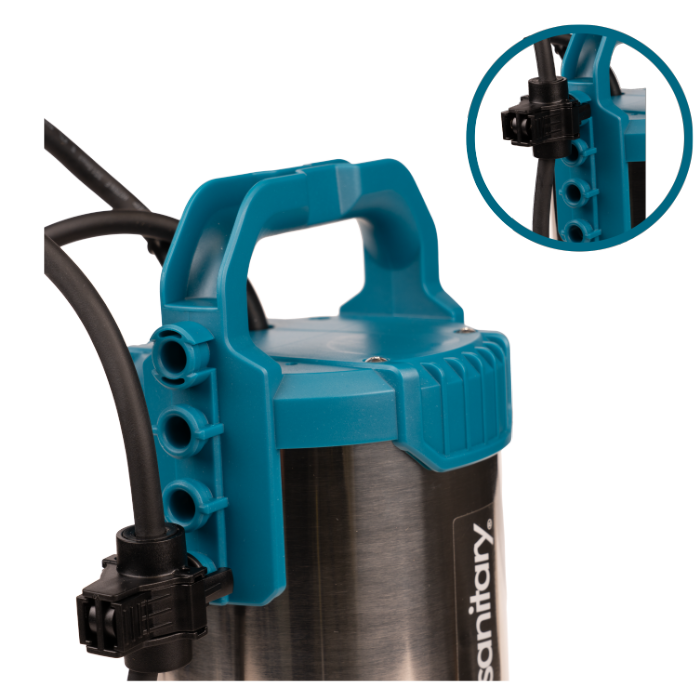

This type of pump is used for irrigating small gardens, supplying clean water in temporary installations, conveying non-corrosive liquids, filling/emptying tanks and small swimming pools. Easy to transport thanks to the height-adjustable handle and low weight.
It is equipped with an electric float switch for automatic starting and stopping of the pump when the water level drops below the minimum level.
Thanks to the materials used in the manufacture of the pump, ABS and stainless steel, the risk of rust formation is considerably reduced.
By operating the lever at the base of the pump, you can extend or retract the support legs. This function is used to maintain an optimum suction clearance, thus allowing the flow rate to be increased.
Technical data:
Power: 550/1100 W;
Material: ABS & stainless steel;
Winding: aluminium;
Pressure: 683548: 0.8/ 683549: 1 bar;
Water temperature: max. 35 ºC;
Flow rate: 683548: 275 L/min/ 6835491: 383 L/min;
Maximum immersion depth: 7 m;
Maximum delivery head: 683548: 8 m/683549:11 m;
Voltage: 230 V, 50 Hz;
Cable length: 10 m;
Connection: -1-1/2"
Maximum particle diameter: 35 mm;
Protection rating: IPX8;
